Baofeng UV-9R Plus Walkie Talkie IP67 Waterproof High Capacity Long Range 5-10KM Portable Type-C Optional FM Upgraded of UV-9R
Baofeng UV-9R Plus Walkie Talkie IP67 Waterproof High Capacity Long Range 5-10KM Portable Type-C Optional FM Upgraded of UV-9R
SPECIFICATIONS
Battery Capacity: High Capacity
Battery Capacity(mAh): high capacity
Battery Included: Yes
Brand Name: BAOFENG
Certification: CE,Dot,EAC,EPA,FCC,GMP,RoHS,TGA,UL,KC,pse,weee

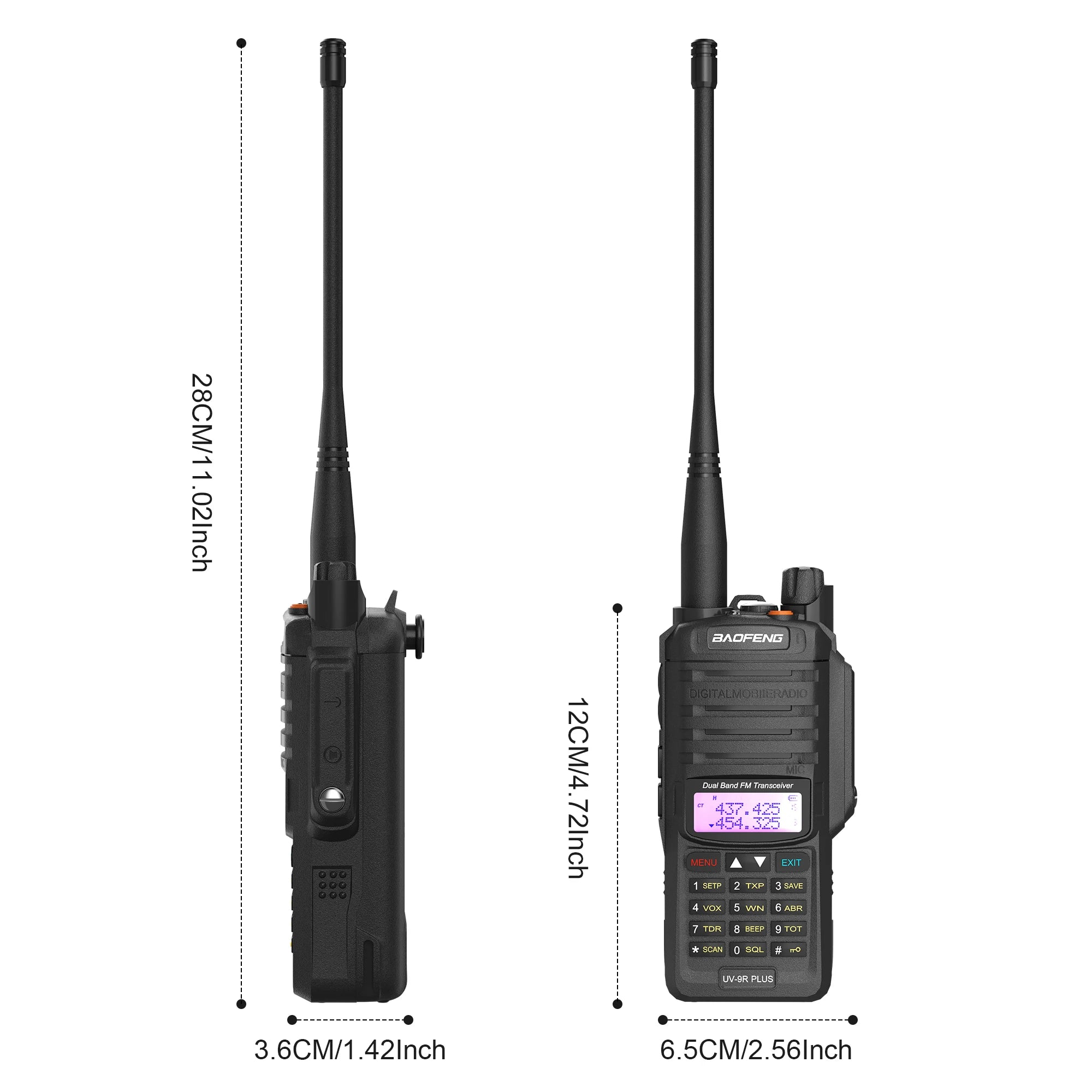

Dimensions: 120x53x35mm ( size without aerial )
Feature 6: ANI code
Feature 1: VOX
Feature 10: LED Flashing
Feature 11: FM receiver(65MHz-108MHz)
Feature 2: VHF&UHF
Feature 3: 128 memory channels
Feature 4: CTCSS & DCS
Feature 5: DTMF emergency alarm
Feature 7: Battery saving function
Feature 8: Emergency SOS sound and light alarm
Feature 9: Programmable by PC
Frequency Range: 400-520MHz,136 - 174 MHz
High-concerned chemical: None
Is_Display: Yes
Material: Plastic
Maximum Range: 5km-10km
Model Number: Baofeng UV-9R Plus Black Keyboard
Origin: Mainland China
Output Power(w): 5w-10w
Power: 8W High Power
Storage Channel: 128CH
Use: others
Version 1: Ordinary batteries do not support Type-C charging
Version 2: Type-C rechargeable battery
Walkie Talkie Type: Portable
Waterproof / Water-Resistant: IP67
Black Keyboard
IP67 Waterproof
Battery Saving Function/LED Flashligh/Dual Band VHF&UHF
Version 2: Upgraded battery with Type-C charging
We will ship according to your order. Please check carefully whether you have made the correct choice before placing an order!

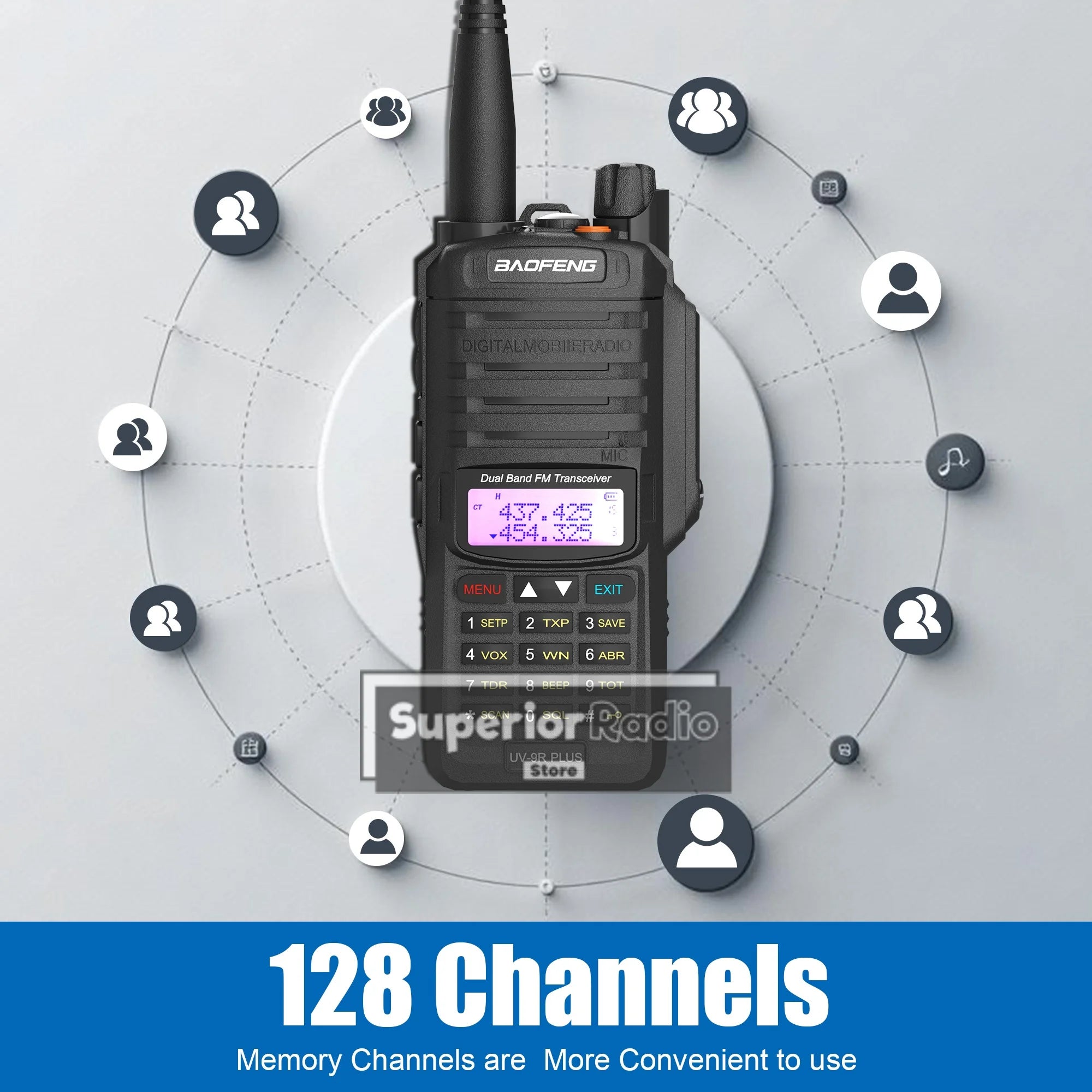

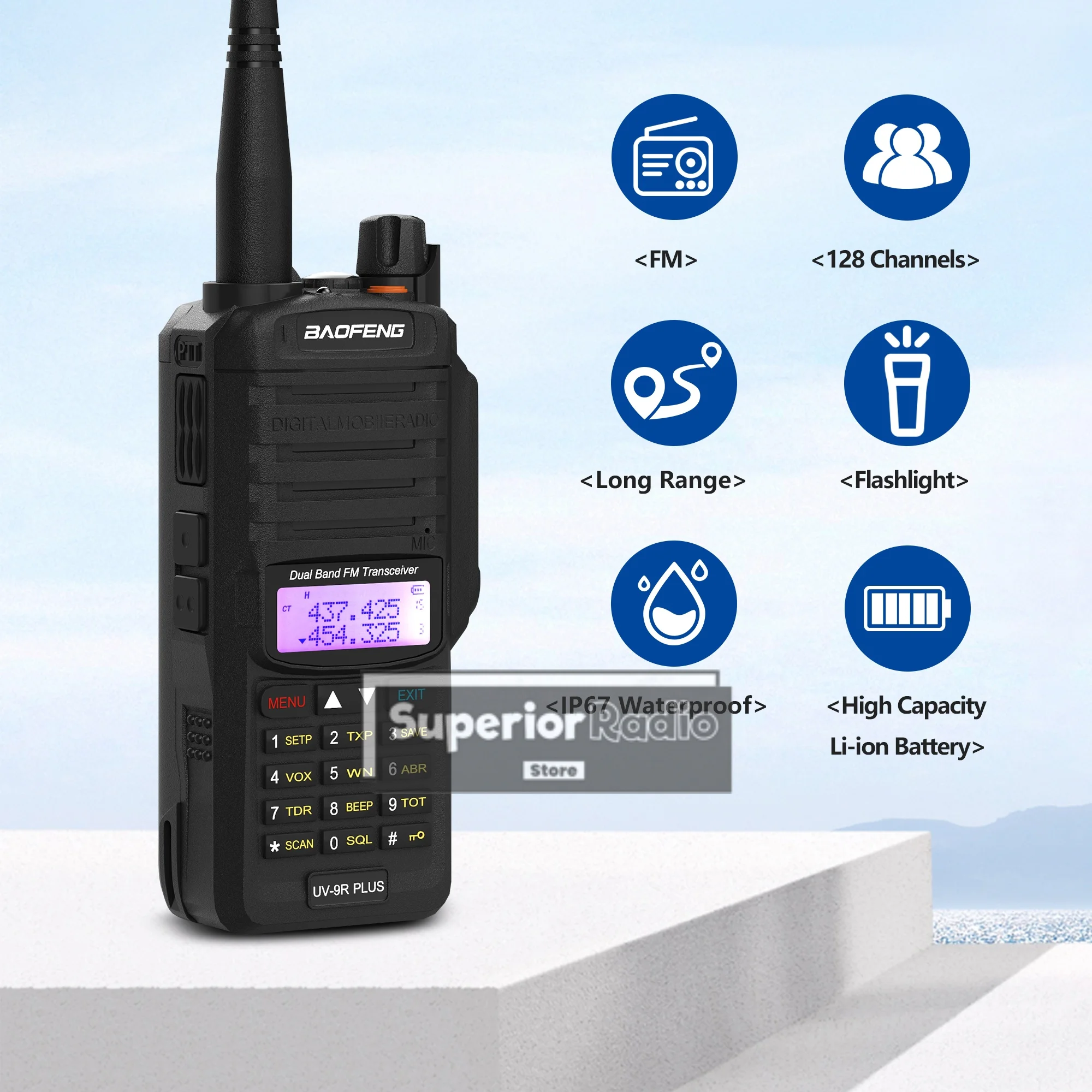

【128 Memory Channels】

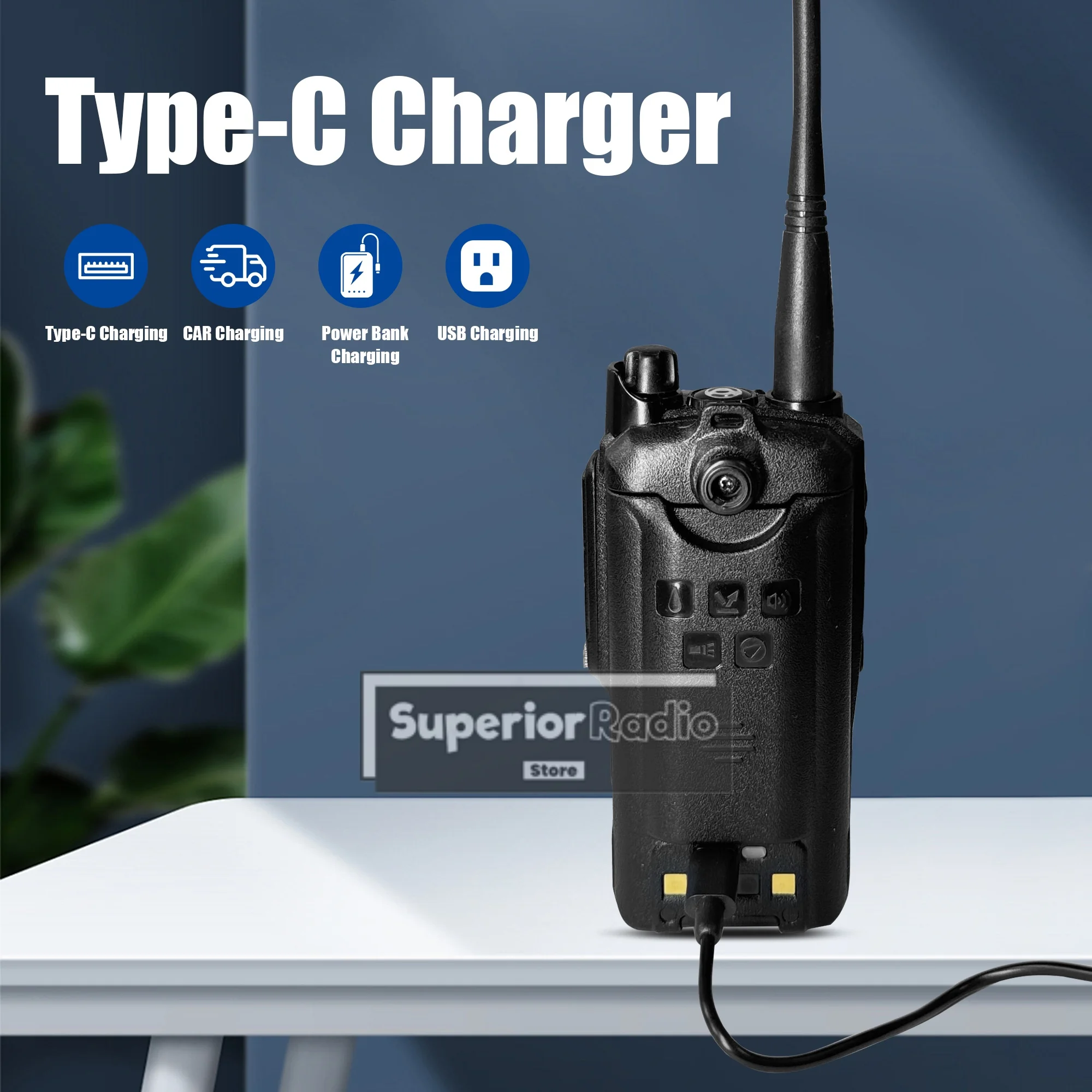

if you choose Type-C Jack Battery【Can be charged using a charger】
The charging base can not only charge the walkie-talkie, but also charge the battery directly!

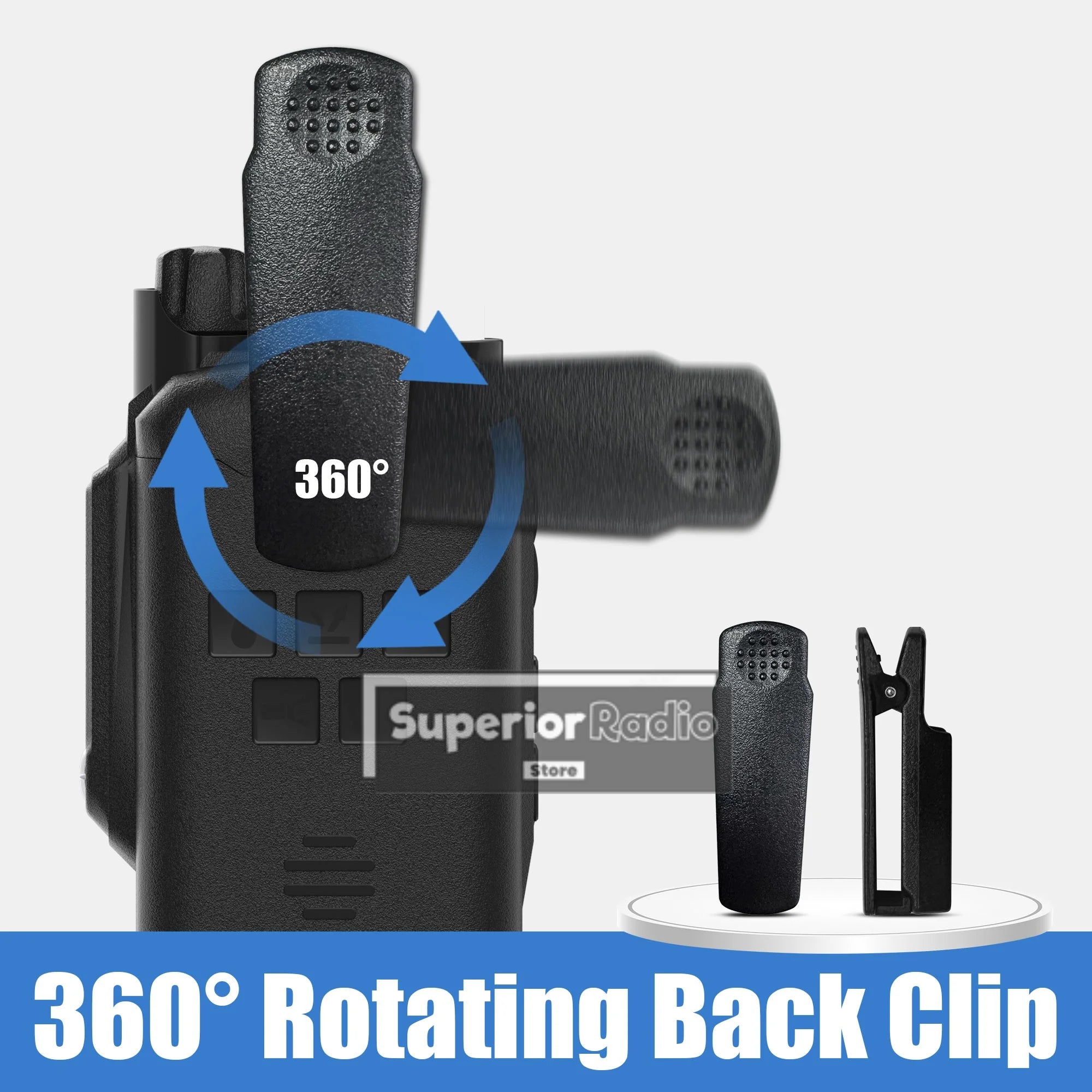

【360 degree rotating back clip】

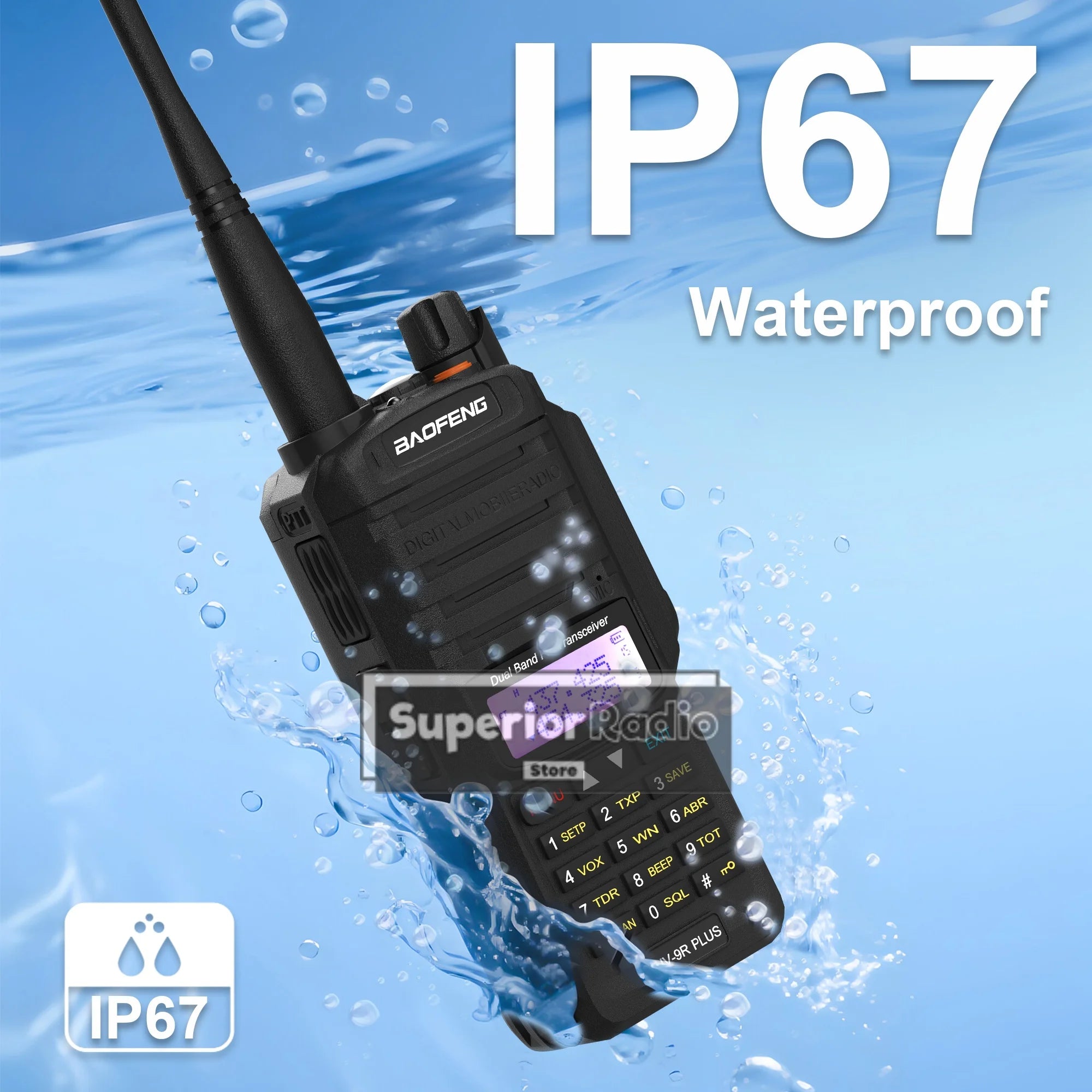

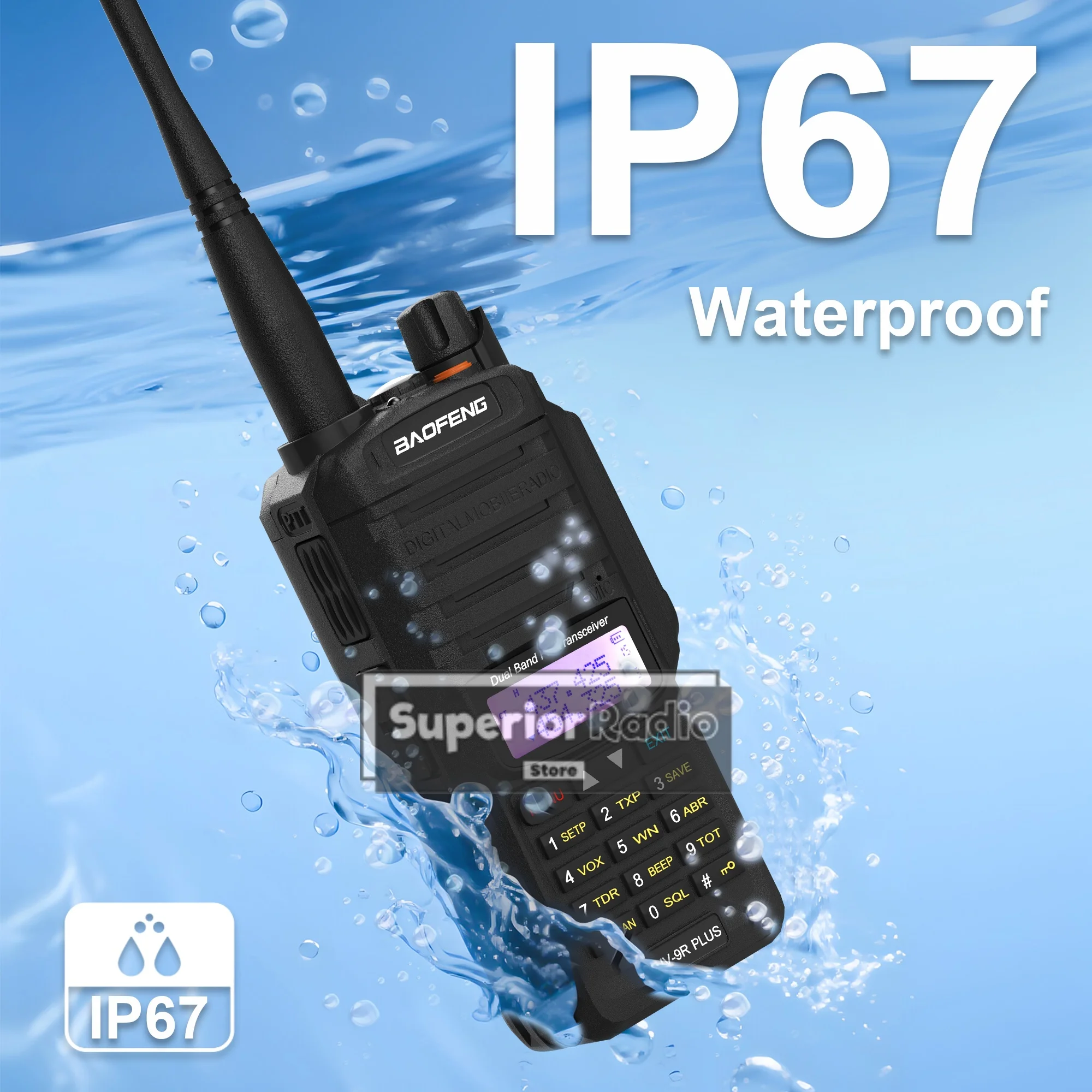

【IP67 Waterproof & Dust】

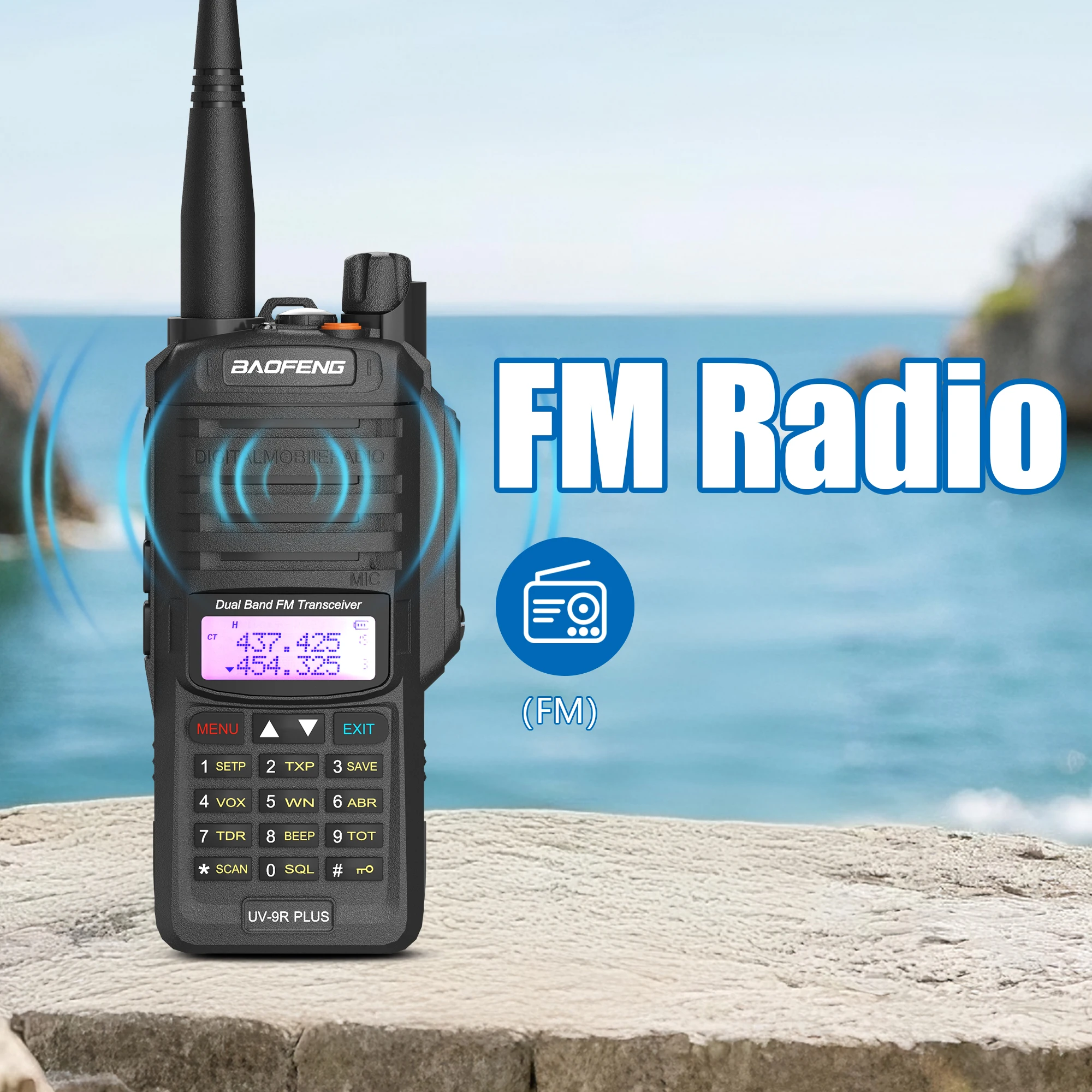

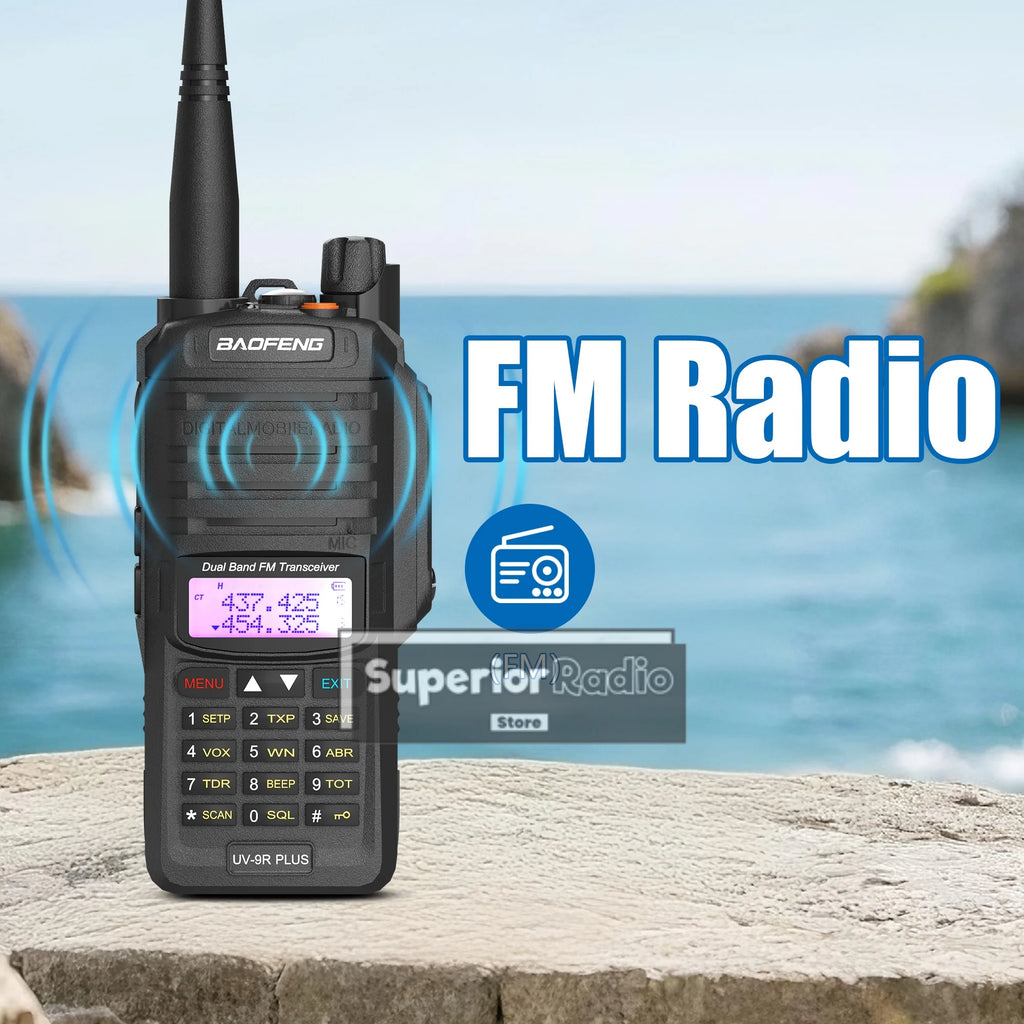

【FM Radio】

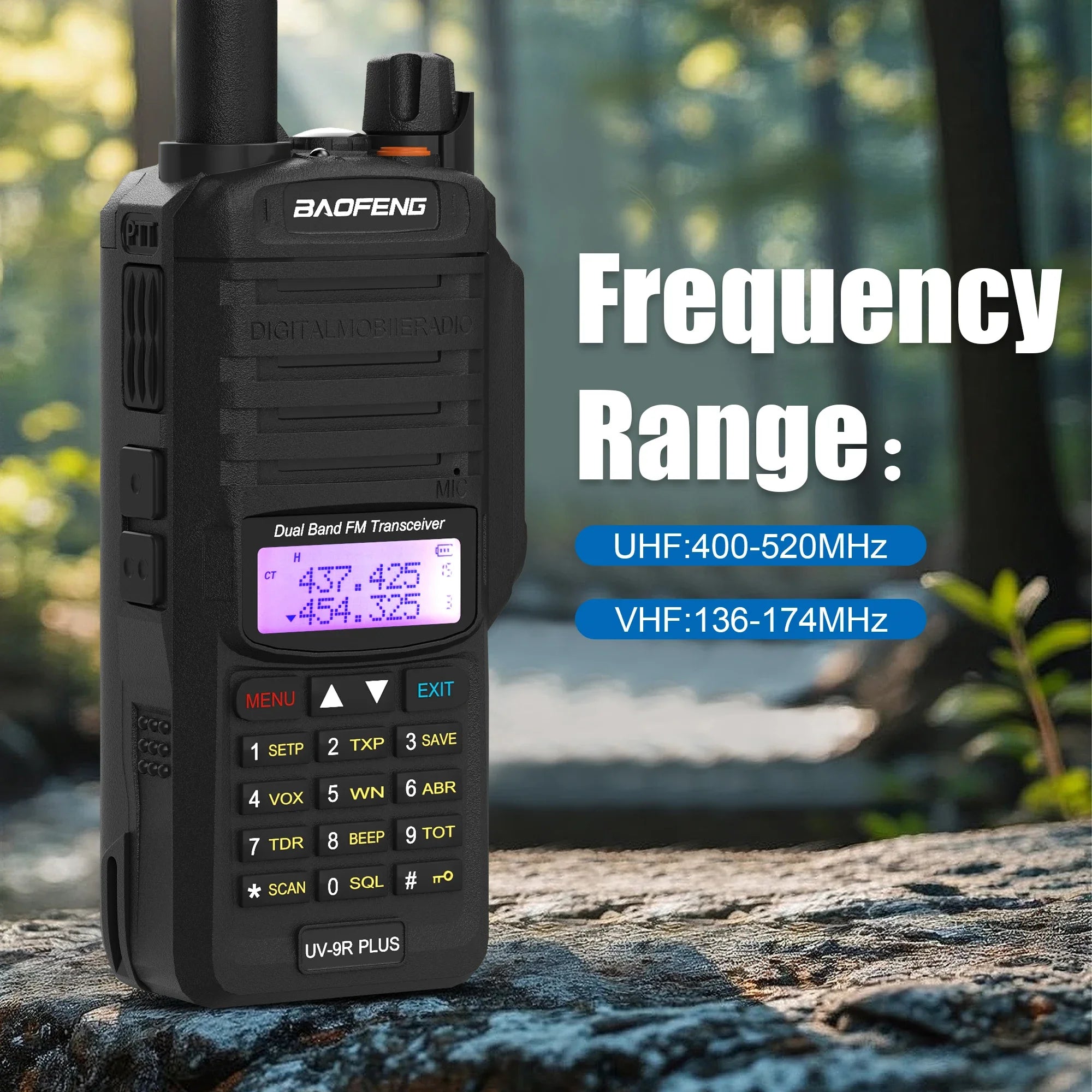

【Dual Band】
VHF:136-174MHz
UHF: 400-520MHz

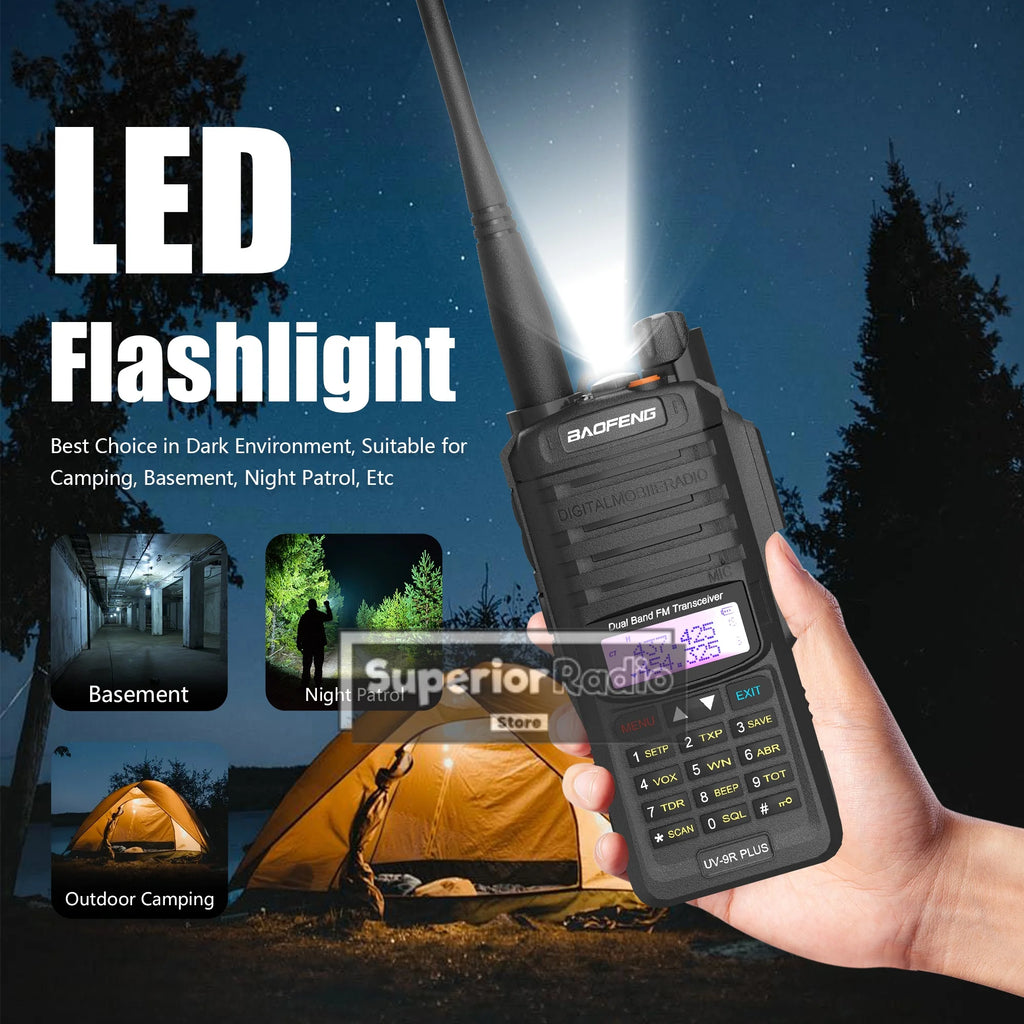

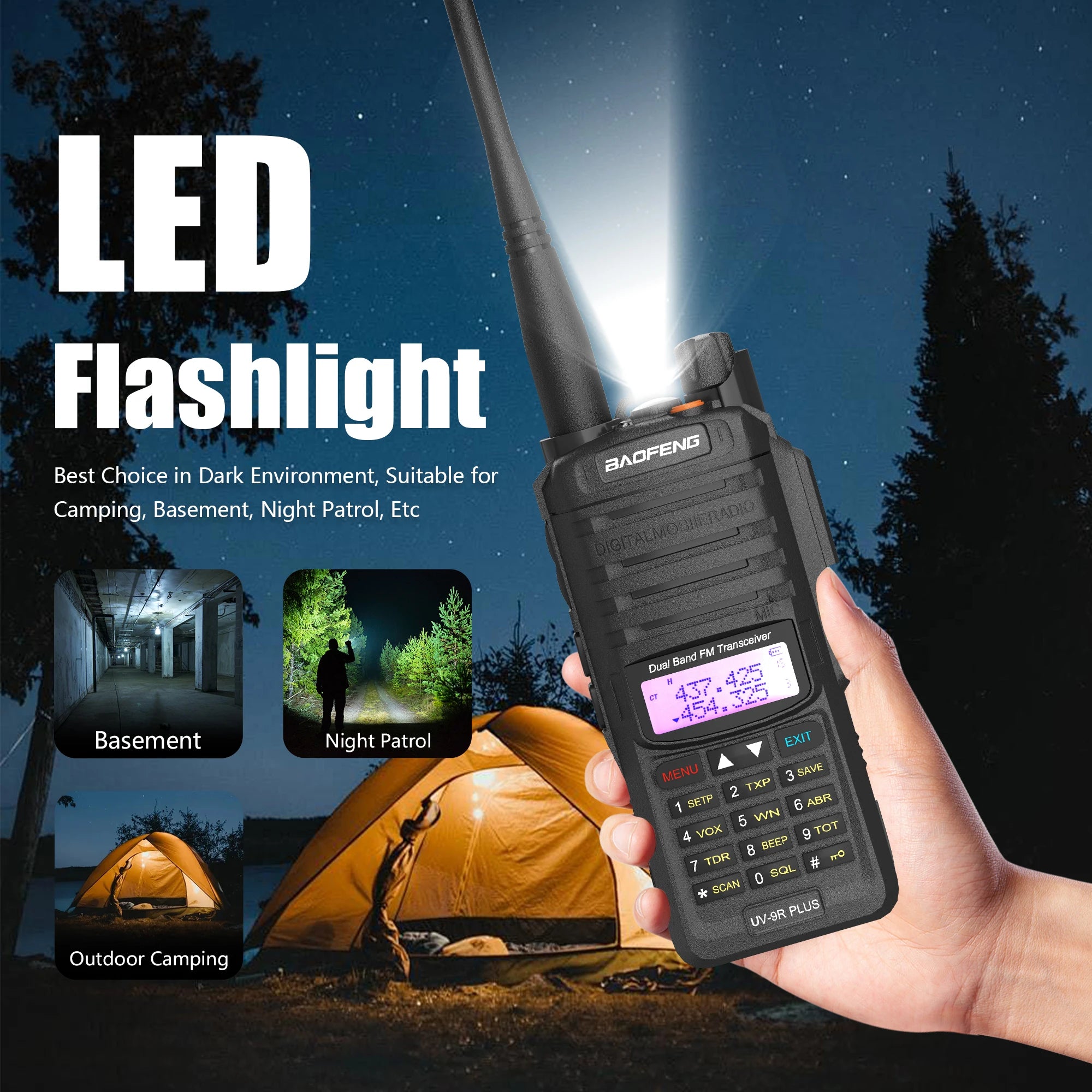

【LED Flashlight】

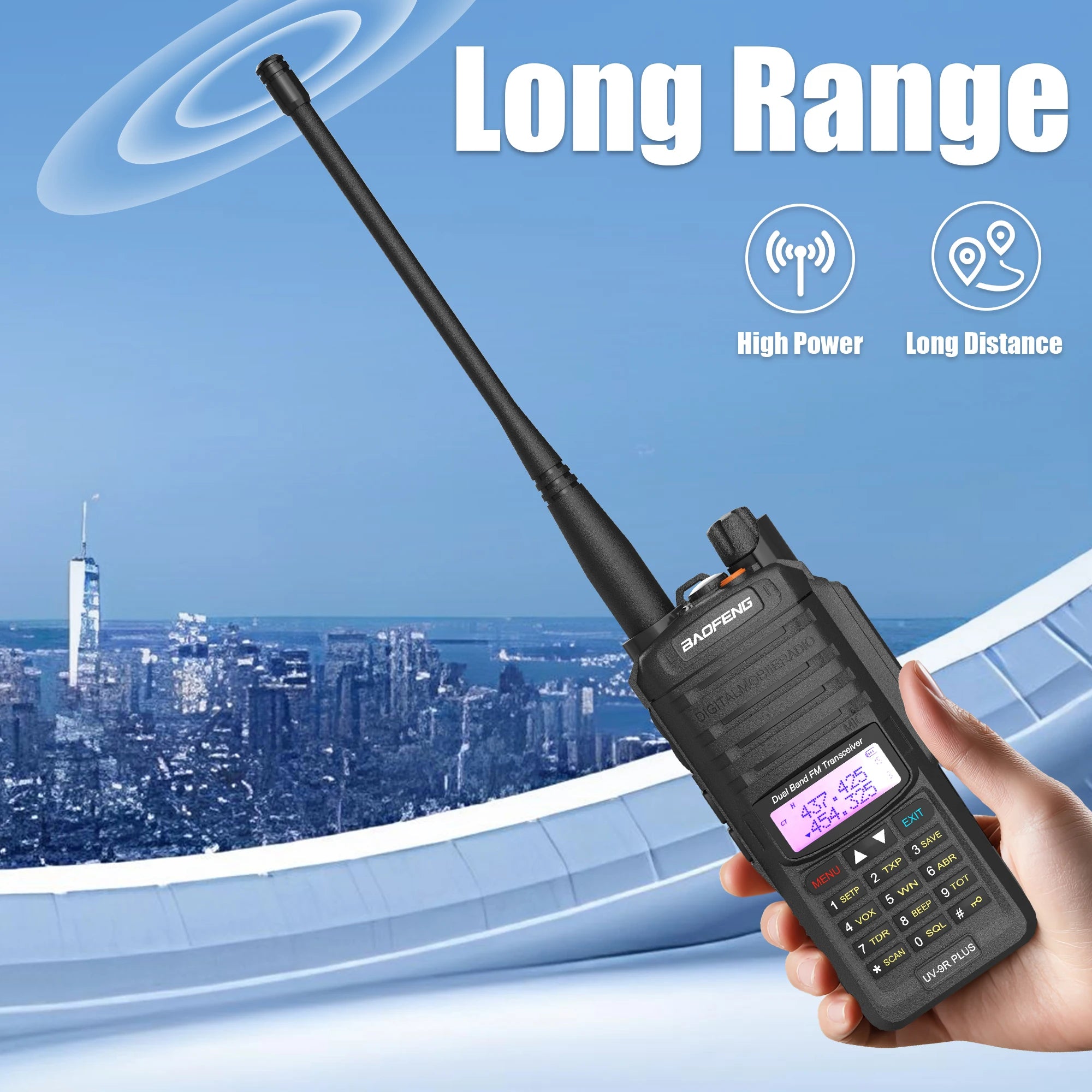

【10KM Long Range】

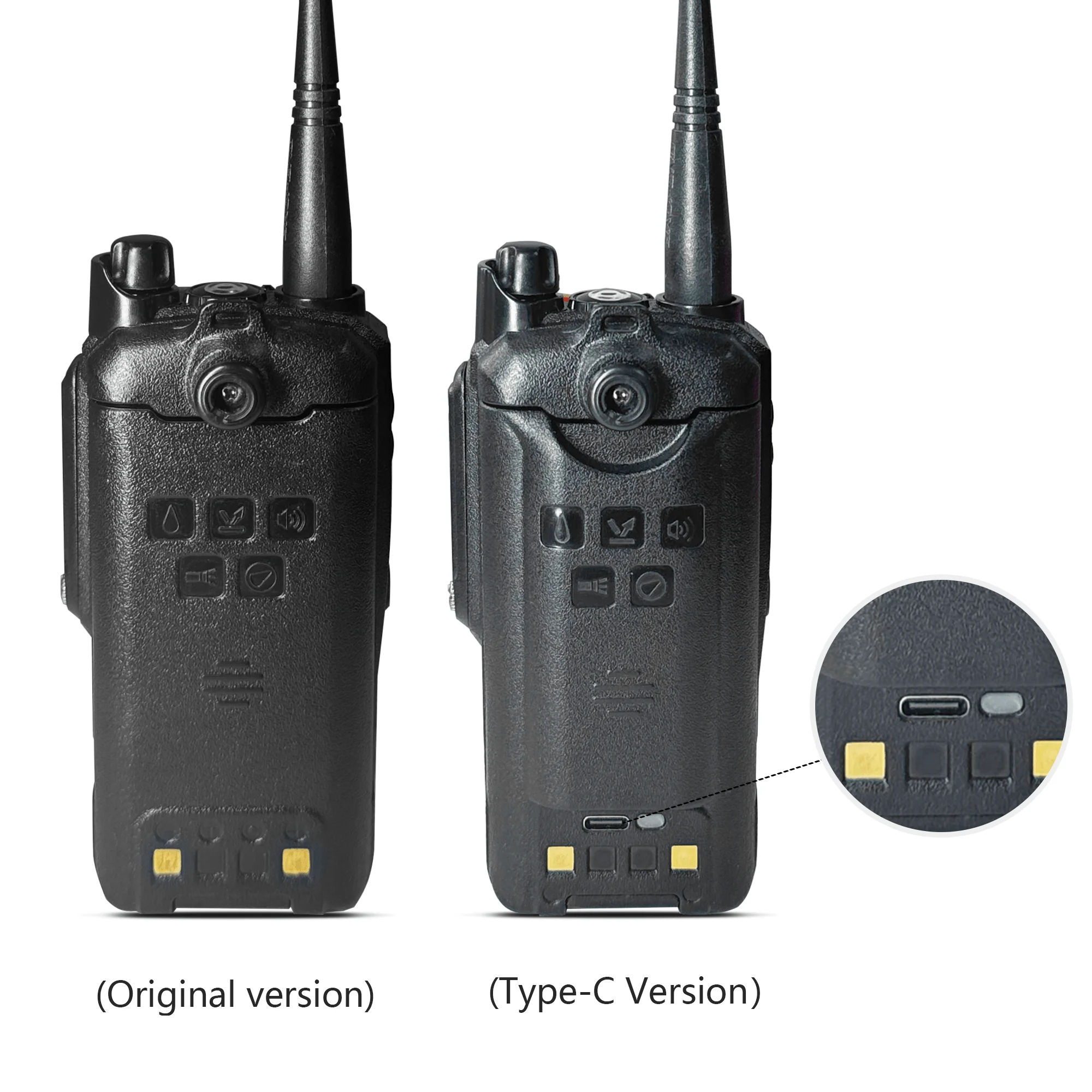

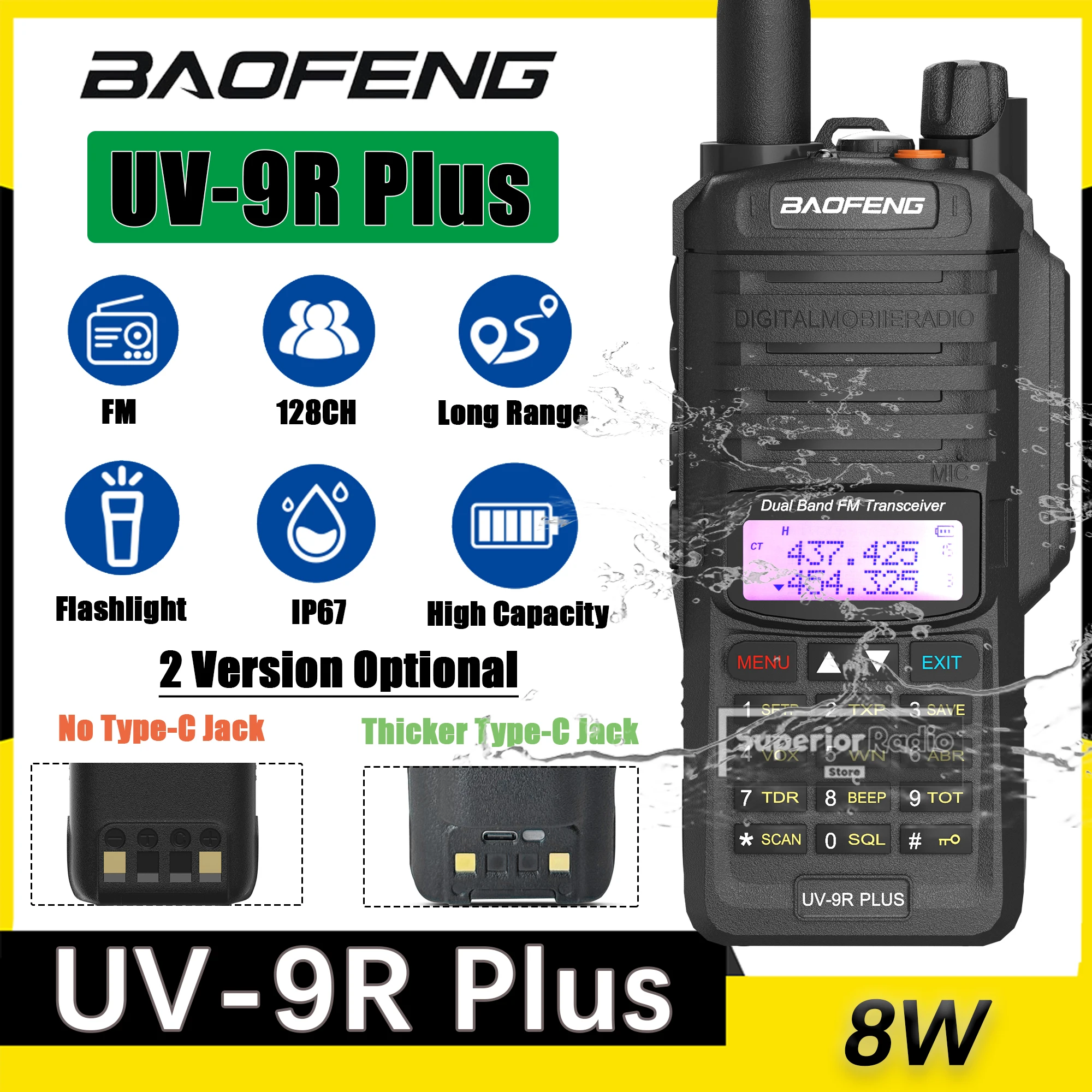

【Two Version】
Version 1 ：Original battery（No support Type-C charger）
Version 2 ：Support Type-C charger battery
Note：Please make sure that the set you choose is correct before placing an order!!!
1.Dual-band handheld transceiver, with display function menu on the display "LCD"Working Frequency: VHF136-174MHz & UHF400-520MHz
2.Up to 128 memory channels.
3.Cross band reception/transmission
4.A variety of display channel number, frequency, channel frequency, channel name, etc.
5.CTCSS & DCS
6.Tone end of transmission
7.Function "VOX" (voice operated transmission).
8.DTMF emergency alarm
9.ANl code
10.Selectable Frequency Step 2.5/5/6.25/10/12.5/20/25/50 kHz
11.Frequency reverse
12.Battery saving function "SAVE"
13.Emergency SOS sound and light alarm
14.Programmable by PC.
15.Broadband (Wide 25KHz)/Narrowband (Narrow 12.5KHz),selectable.
16.Commercial FM radio receiver (65 MHz ~ 108 MHz).
17.Display illumination and programmable keyboard.
18.Built-in LED flashlight
General
*Frequency Range:
65MHz-108MHz(Only commercial FM radio reception)
VHF:136MHz-174MHz (Rx/Tx)
UHF:400MHz-520MHz(Rx/Tx)
*Memory channels:Up to 128 channels
*Frequency stability:2.5ppm.
*Frequency step:2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/20/kHz/25kHz
*Antenna impedance:50Ω
*Operating temperature:-20℃ to +60℃.
*Supply voltage:Rechargeable Lithium-lon mAh 7.4V/1800.
*Consumption in reception:380mA
*Consumption in transmission:≤1.4 A.
*Mode of operation:Simplex or semi-duplex.
*Duty cycle:03/03/54 min.(Rx/Tx/Standby).
*Weight:279g (approximate).
Transmitter
RF power:5W/1V.
Type of modulation:FM.
Emission class:16KФF3E/11KФF3E (W/N)
Maximum deviation:≤±5 kHz/≤±2.5 kHz (W/N)
Spunous emissions:<-60 dB
Receiver
Receiver sensitivity:0.2 μV(at 12 dB SINAD)
Intermodulation:60 dB.
Audio output:1W
Spurious Radiation:≧65dB

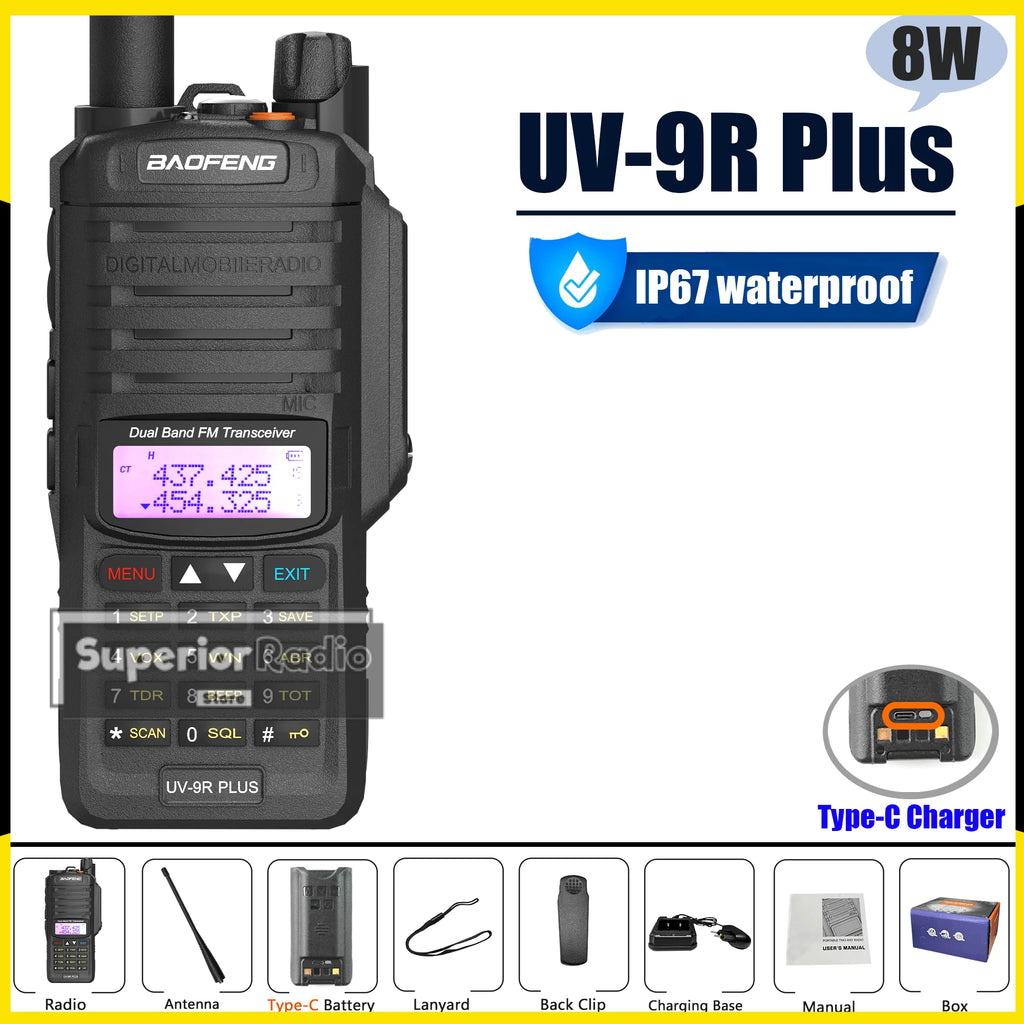

Package Include：
1 X Radio
1 X Antenna
1 X Li-ion battery
1 X Desktop charger
1 X Belt clip
1 X The sling
1 X User's manual
Note：There are two version of batteries. Please check carefully whether you have chosen the correct one before placing an order! ! ! ! We will ship according to your order.
